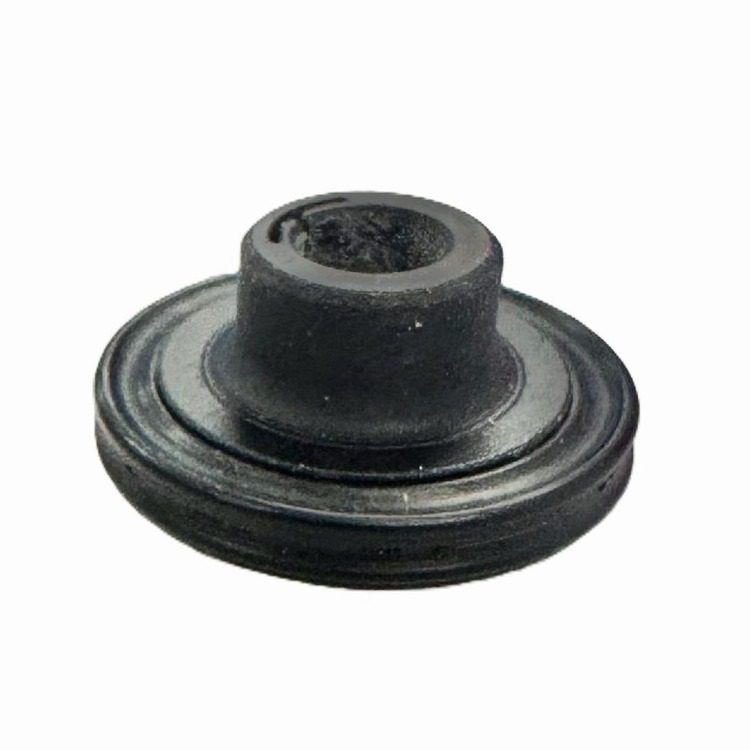

3D Encoder Wheel

Encoder Wheel for Smooth and Accurate Quilting

The encoder wheel is an essential part of your APQS longarm quilting machine. It works with the Perfect Stitch regulation system to ensure every stitch is smooth, consistent, and placed exactly where you want it. Each stitch-regulated APQS machine uses two encoder wheels — one to monitor front-to-back movement, and one to track side-to-side movement. Together, they help your quilting machine translate your movements into precise stitch placement, giving you the confidence to quilt with ease.

How the APQS Longarm Quilting Machine Uses the Encoder Wheel

As you guide your APQS longarm quilting machine across the quilt top, the encoder wheel rotates in sync with your movements. This rotation sends signals to the machine’s controls, telling it exactly where to place each stitch. The result is perfect stitch regulation that keeps your stitches even in length, no matter how fast or slow you quilt. This allows you to focus on creativity while the machine handles the precision.

Longarm Quilting Machine Maintenance for Lasting Performance

Keeping your encoder wheel in good condition is an important part of longarm quilting machine maintenance. Each wheel has built-in adjustability to extend its lifespan. Over time, the wheel’s rubber edge will wear down. When the maximum adjustment point is reached, it’s time to replace the wheel to maintain smooth movement and accurate stitching. A fresh encoder wheel restores the feel and control you depend on during quilting.

Fits a Wide Range of APQS Models

This encoder wheel is compatible with all generations of APQS Millennium, Freedom SR, Lenni, Lucey, Larry, and Liberty machines. Whether you’ve had your APQS longarm quilting machine for years or it’s brand new, this part is designed to fit and perform reliably. Keeping spare encoder wheels on hand ensures you can replace them quickly and keep quilting without interruption.
